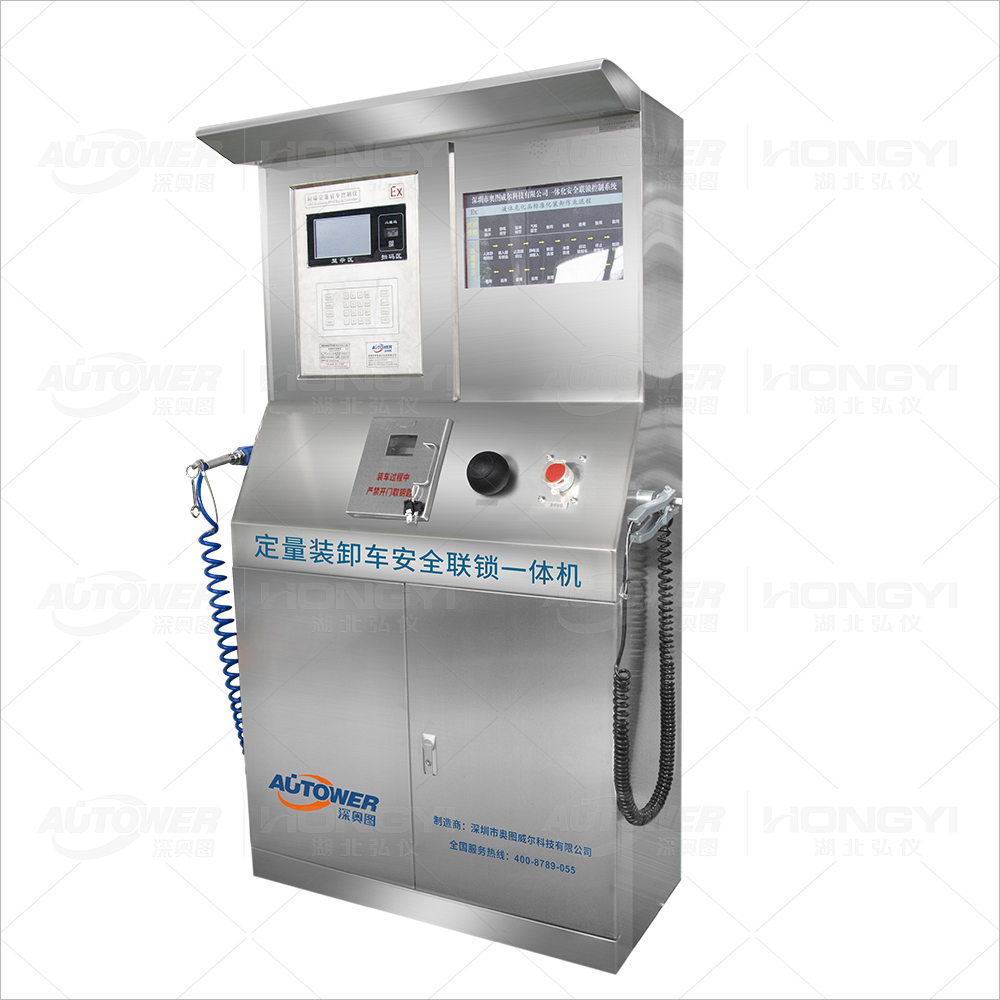

This Safety Interlock Controller is a dedicated safety protection system designed specifically for loading system.The system detects the return status of bottom-loading arms (both liquid and vapor phases) via the loading arm return detectors. It monitors liquid levels, static grounding status, key manager return status, and human static discharge via the anti-static and anti-overfill protector. detectors.
| Standard Integrated Safety Interlock Controller | Customized Integrated Safety Interlock Controller | |
 |
 |
|
To enhance packaging quality, strengthen packaging management, and prevent product loss or damage during transit resulting from packaging-related issues, this Export Packaging Specification has been specifically formulated.
This specification applies to the packaging of all products exported by this Company.
| Requirement | Responsible Dept. | |
| Before Packaging | Confirm that the product has been tested and is free of defects. Confirm that the product’s exterior is clean and free of stains, standing water, or similar issues. | Quality Dept. |
| Product Packaging | 1. Skid-mounted and Containerized Packaging: A three-layer packaging system—comprising inner, intermediate, and outer packaging—is required. The packaging must be securely fastened and stable, providing effective protection for the product. a. Individual instruments on the skid must be protected with bubble wrap and tightly bound with stretch film. b. The entire skid must be protected with bubble wrap and tightly bound with stretch film. . Containers equipped with racks must be securely fastened using strapping bands. d. Loose piping must be wrapped in protective fabric to prevent paint damage from impact, and then placed onto a dedicated packing rack. Legend 2. Individual Packaging A three-layer packaging system—comprising inner, intermediate, and outer packaging—is required. The packaging must be securely fastened and stable, providing effective protection for the product. Inner Packaging: Foam wrap must be used to fully enclose the items, ensuring that no direct collision or friction occurs between products or between the products and the carton. Each individual item must bear both Chinese and English labels to facilitate inventory verification by the customer. Intermediate Packaging: Packed in cartons. Outer Packaging: Wooden crate packaging. The materials used must consist of plywood crates (fumigation-free) reinforced with steel strips. Any remaining space inside the box must be filled with cushioning material. For heavier products, particular attention should be paid to packaging strength to prevent damage during transit. | Production Dept / Warehousing & Logistics Dept |
| packaging | 1. Steel strips / wide wooden slats to wrap the 8 legs. Note: Wooden slat width: mm; thickness: mm. 2. 6–8 reinforcement points inside the box. 3. For any face exceeding 2 CBM, cross-bar or I-beam steel reinforcement is required. Note: The spacing between cross-bars/I-beams must be less than or equal to mm. 4. All packaging must include forklift access points to facilitate loading and unloading. 5. Packaging must be designed based on the dimensions of the container; under no circumstances should it exceed the container’s length, width, or height. | Warehousing & Logistics Dept |
| Shipping Mark | In accordance with the accompanying documentation, affix the shipping marks and packing lists to the front and sides, respectively . | Warehousing & Logistics Dept |
| Packaging Markings | Fragile, Keep Dry, This Side Up. Labels must be clear and securely affixed. | Warehousing & Logistics Dept |
| Instruction Manual placement | You must include: an instruction manual (either entirely in English or bilingual English-Chinese), a Certificate of Conformity, and a test report. (Note: No documents may be submitted exclusively in Chinese.) | Quality Dept |
| Take photos for the archive. | The packaging process must be documented via photographs or video recordings, and relevant information retained. All photographic and video files must be date-stamped and subsequently archived. | Warehousing & Logistics Dept |
We will promptly provide you with all technical data and drawings specified in the contract.
We will provide technical services on site at the time requested by you, and install, commission, and operate the entire set of equipment in accordance with your technical data and drawings.
For spare parts and accessories related to the contracted equipment that you have selected, the supplier shall proactively provide technical conditions and data that meet the equipment interface requirements.
Strictly enforce the minutes of meetings or agreements signed by both parties regarding relevant issues.
Conduct business training sessions for you on equipment installation, commissioning, operation, and maintenance techniques in accordance with the contract.
Strengthen pre-sales, sales, and after-sales services, and implement “24-hour service,” “proactive service,” “full-process service,” and “lifetime service” throughout the entire process of product manufacturing, installation, commissioning, and repair.
Upon receiving your feedback, we will respond
within 24 hoursand strive to resolve the issue quickly through online support. If on-site assistance is required, we will dispatch our service personnel to your location as soon as possible. Regardless of the circumstances, our commitment to providing continuous service for our products remains unwavering.
We will promptly fulfill your requirements for spare parts.
Equipment maintenance: All oil treatment units sold by us are covered by a lifetime warranty.
